Water Leak Detection System

Water Leak Detection System
Water Leak Detection System
Product Code : SEC - 03
Price And Quantity
  • Minimum Order Quantity
  • 01
  • Unit of Measure
  • Unit/Units
Product Description

We are instrumental in offering premium quality Water Leak Detection System that is installed inside the water tank to detect the overflow or leakage of water. The offered system is manufactured using high grade components and modern technology as per the set industry standards. In ahead of dispatching the delivery from our end the offered product is tested thoroughly to ensure its flawlessness. Our precious clients can avail this Water Leak Detection System at rock bottom prices.


  • High strength

  • Low power consumption

  • Long working life

  • Shock proof body

Types Of Star Water Leak Detection Systems

  • Zone H2O Alert Model

Critical Problematic Areas

  • Spaces around pipe leaks
  • Spaces of false ceilings
  • Assets of Data Centre spaces below the elevated server racks
  • Blocked ventilation system around machines cause condensation
  • Water leaks associated with air conditioners

Damages that can be incurred

  • Insulation breakdown that may be caused due to soaked cables. This results in signal breakdown, amongst other malfunctions
  • Loss of important data, equipment and backup tapes
  • Loss of manpower time because of understanding and solving of unseen faults
  • Premature hardware failure due to formation of rust

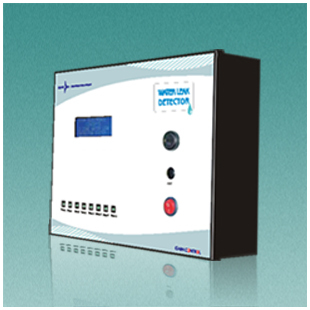

Control Panel

  • Optional 2 to 8 zones (areas) adaptability
  • In built connectors to interface the hooters & RS 485
  • In case of malfunction or not-normal condition, the alarm activates automatically. It can be shut off manually and reset.
  • The panel required power connection, for which it has a 3-pin power supply cord
  • Integrated software to monitor and report generation along with events logging facility


  • 4 x 20 LCD for displaying status of all water leakage sensors, Door status
  • LED Display status for all zones

Sensor Cables

  • Detects fluid along the entire length
  • Flexible construction and simple to maintain
  • Non conductive and abrasion resistant polymers increase the strength of the cables
  • Pressure on the cables does not produces false alarm
  • Senses conductive fluid in a reliable manner

Technical Specifications


Control Panel with optional ( 2 to 8) zones


305 x 225 x 85 mm.

Leader cable

5 mts



Operating Voltage

230V AC 50 Hz

Sensor Cable length

10, 15, 20 and 25 mts.

Sensor Cables


2.5 Kgs
